Installation
Mounting options
Interior doors
Exterior doors
Profile doors

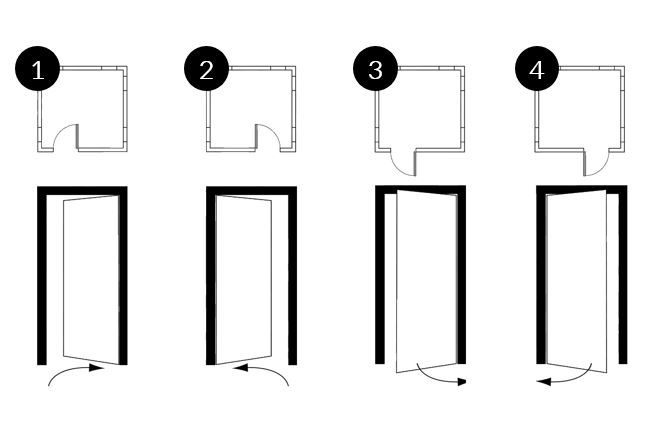

Door orientation
- to the left, inside
- to the right, inside
- to the right, outside
- to the left, outside
Types of compatible locks

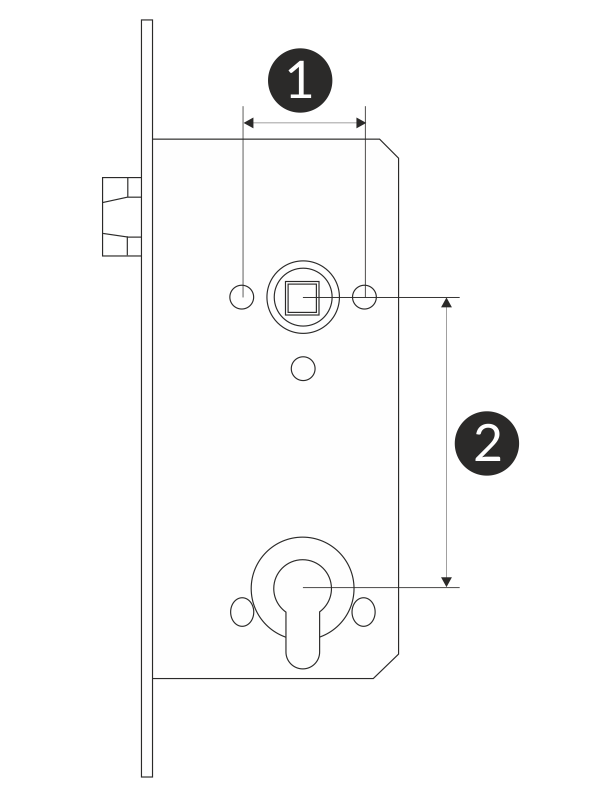

The ELH-01H5 and ELH-02H5 smart handles have a universal spacing of tightening screws 38~40.5 mm (1).
In most cases, it allows the use of the most popular recessed inserts of the standard 72, 90 or 92 mm (2) that are factory-installed in the door.
Note: Installation in non-rebated doors is not recommended.

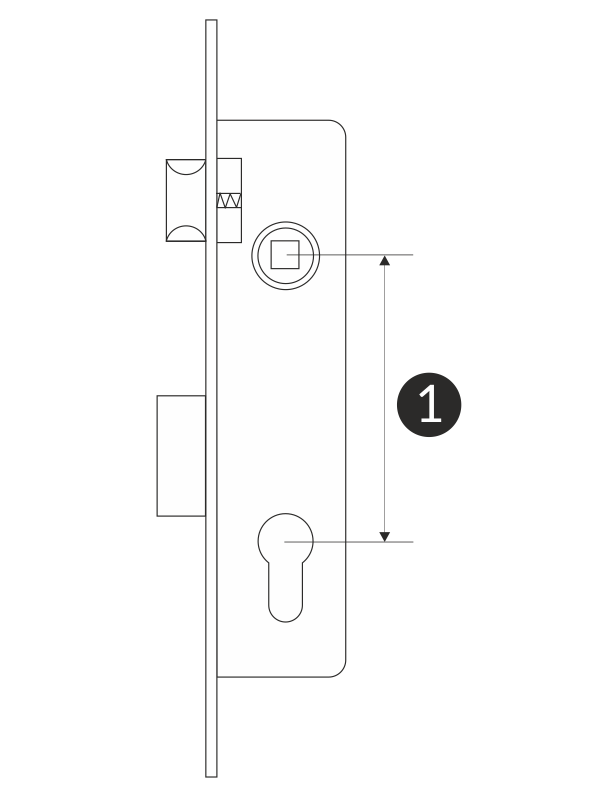

The intelligent ELH-20H5 handles are ideal for installation in profile doors, but can also be used in classic wooden doors.
In most cases, it allows the use of the most popular narrow-profile recessed inserts of the 90 mm standard (1) that are factory-installed in the door.
Note: Installation in non-rebated doors is not recommended

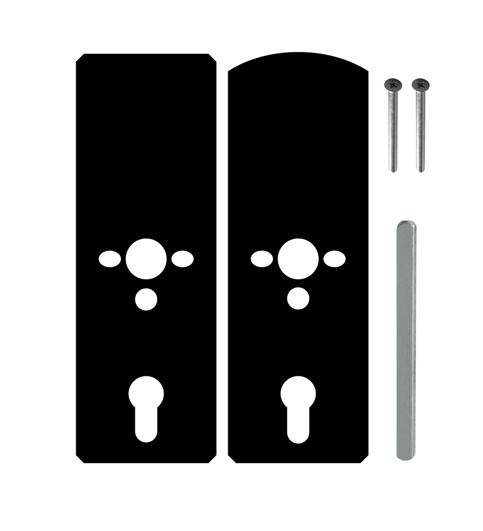

Custom-sized cover plates
Sometimes smart handles do not cover the hole made in the door. In such situations, cover plates made of high-quality acrylic should be used.
Standard kit includes:
- internal and external covers
- square pin with dimensions of 8x8x150 mm,
- two 60 mm long tightening bolts
